KU6-DI · KUD6-DI · KUS6-DI
No. 256 000 · No. 209 000 · No. 237 000
CO2-filling unit KU6 suitable to fill any size, shape or make of CO2-cartridges (from 20 g) and CO2-bottles (up to 6 kg) with the universal filling head. CO2-unit with integrated digital scale 30 kg in table form with 40 mm thick wooden board.
Optional available at extra charge:
- Equipped with mechanical sliding weight scale
- Electric supply with 230/400 V, 60 Hz

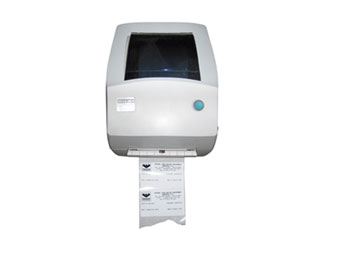

- Equipped with label printer
- CO2-steel filter
The unit is equipped with:
- Silent directly flanshed CO2-pump
- Filling speed control for slow filling of cartridges and fast filling of large bottles
- Fine regulation for small cartridges
- Fast filling for large cylinders
- Digital scale (30 kg weighing range) with automatic cutoff feature – resolution 5 g or 10 g optional
- Operation by electrovalves
- Filling of large bottles more than 6 kg has to be carried out on a separate floor scale with automatic cut-off feature (scale not included)
- No pre-cooling system for CO2 source bottle required
- Emptying of CO2 master bottle up to 95%
| TECHNICAL DATA KU6-DI (No. 256 000) |
| Capacity | max. 5 kg/min |
| Operating pressure | max. 130 bar |
| Safety valve | 130 bar |
| Drive | AC 230 V, 50 Hz |
| Dimensions (l x w x h) | approx. 1000 x 750 x 850 mm |
| Colour | hammer finish painted blue |
| Standard accessories | + 3 adaptors for filling of CO2-cartridges, Ø 18 mm, 25 mm and 32 mm + 1 CO2 high-pressure hose, 2 m + 1 rotary filling valve “DF 1” to fill CO2-bottles + 1 height adjustable support, KS-6 + 1 set of sealings for filling adaptors |
| TECHNICAL DATA KUD6-DI (No. 209 000) |
| Capacity | max. 5 kg/min |
| Operating pressure | max. 130 bar |
| Safety valve | 130 bar |
| Motor | AC 230 V, 50 Hz |
| Compressed-air | 8 – 10 bar 800 l/Luft/min |
| Dimensions (l x w x h) | approx. 1000 x 750 x 850 mm |
| Colour | hammer finish painted blue |
| Standard accessories | + 3 adaptors for filling of CO2-cartridges, Ø 18 mm, 25 mm and 32 mm + 1 CO2 high-pressure hose, 2 m + 1 rotary filling valve “DF 1” to fill CO2-bottles + 1 height adjustable support, KS-6 + 1 set of sealings for filling adaptors |
| TECHNICAL DATA KUS6-DI (No. 237 000) |
| Capacity | max. 5 kg/min |
| Operating pressure | max. 130 bar |
| Safety valve | 130 bar |
| Drive | three-phase current 230/400 V, 50 Hz |
| Dimensions (l x w x h) | approx. 1000 x 750 x 850 mm |
| Colour | hammer finish painted blue |
| Standard accessories | + 3 adaptors for filling of CO2-cartridges, Ø 18 mm, 25 mm and 32 mm + 1 CO2 high-pressure hose, 2 m + 1 rotary filling valve “DF 1” to fill CO2-bottles + 1 height adjustable support, KS-6 + 1 set of sealings for filling adaptors |
