KU1-WA · No. 252 500

product inquiry
download data sheet

KU1-WA

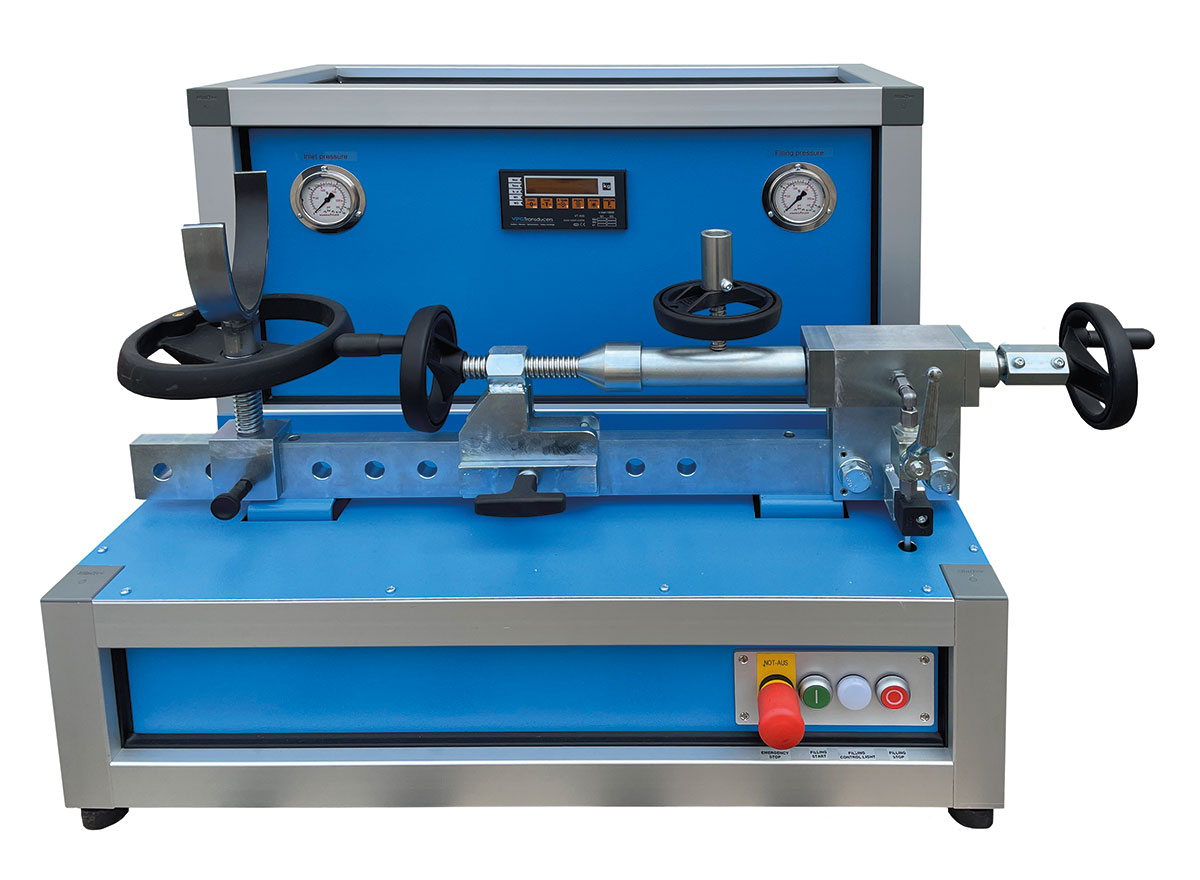

Electrically powered CO2 filling machine with integrated filling station for filling CO2 cartridges from 20 g to 6 kg CO2 bottles.

Large cylinders weighing more than 6 kg can be filled with CO2 using a hose with an adapter (No. 200 105). This hose is then connected to the filling head. The device must then be switched off manually and a separate scale used.

TECHNICAL DATA
Dimensions (l x w x h)approx. 1100 x 500 x 600 mm
Constructionaluminium
Pump3-pistons-pump
Drive230 V, 50 Hz, 10 A or 3 x 230/400 V, 50 Hz, 16 A
Filling capacityapprox. 3 kg/min
Weightapprox. 90 kg

Equipped with:

  • Digital scale, max. 30 kg, 10 g resolution
  • automatic shutdown
  • CO2-intake hose

Optional extra charge:

  • EXTRA CO2 input filter
