SUM-20-KOMPLETT · No. 353 000

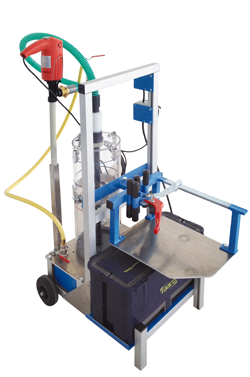

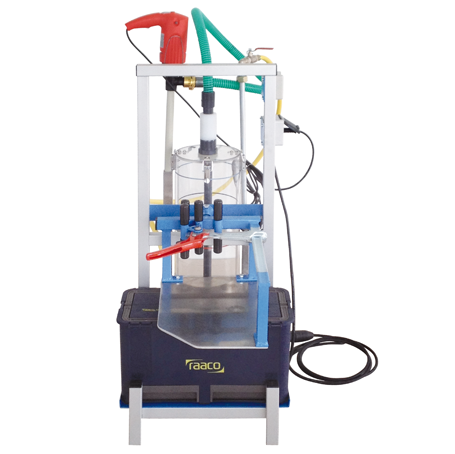

The mobile and manual foam filling unit, model SUM 20 for filling of foam an water extinguishers from 1 to 12 liters. To avoid the foaming inside the filled extinguisher, the filling takes part from the bottom up.
The unit is equipped with:
- A foam middle pump with two filling speeds for foam and water
- A trolley with mounted 360° rotable clamping device
- Foam suction lance, 700 mm including coupling
- Tool box (tools not included in delivery)
- Foam/water reservoir, high quality steel, approx. 20 l capacity
| TECHNICAL DATA |
|---|
| Voltage | AC 230 V, 50 Hz, 10 A |
| Dimensions (l x w x h) | approx. 600 x 400 x 1000 mm |
| Weight (empty) | approx. 40 kg |
| Suction Capacity | approx. 30 l/min |
| Construction | aluminium construction |
| Colour | hammer finish painted blue |
