KU4 · KUD4 · KUS4
No. 253 000 · No. 205 000 · No. 233 000

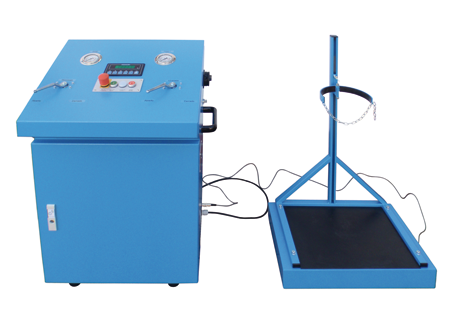

CO2 Filling Unit KU4 (230V), KUD4 (compressed air driven) and KUS4 (380V) for filling Co2 Cylinder from 150 g up to 45 kg.
Unit consists of:
- Steel case with ergonomic user interface
- CO2 pump
- Safety valve 130 bar
- Electric cable, 5 m, oil and acid resistant
- electric control panel with indicator light
- 2 pieces of CO2 hoses
Optional extra charge:
- CO2 input filter
| TECHNICAL DATA KU4 (No. 253 000) |
| Capacity | max. 4,5 kg/min |
| Motor | AC 230 V, 50 Hz |
| Weight | approx. 59 kg |
| Dimensions (l x w x h) | approx. 500 x 700 x 1000 mm |
| Colour | hammer finish painted blue |
| TECHNICAL DATA KUD4 (No. 205 000) |
| Capacity | max. 4,5 kg/min |
| Drive | compressed-air-driven 8 – 10 bar |
| Weight | approx. 45 kg |
| Dimensions (l x w x h) | approx. 500 x 700 x 1000 mm |
| Colour | hammer finish painted blue |
| TECHNICAL DATA KUS4 (No. 233 000) |
| Capacity | max. 4,5 kg/min |
| Drive | three-phase current 230/400 V, 50 Hz |
| Weight | approx. 65 kg |
| Dimensions (l x w x h) | approx. 500 x 700 x 1000 mm |
| Colour | hammer finish painted blue |
