KU5-DI · KUD5-DI · KUS5-DI
No. 255 000 · No. 207 000 · No. 235 000
CO2-filling unit KUD5Di suitable to fill any size, shape or make ofCO2-cartridges (from 20 g) and CO2-bottles (up to 6 kg) with the universal filling head.
Optional available at extra charge:
- Mechanical sliding weight scale
- Electric supply with three-phase current 230/400 V, 60 Hz
- Equipped with label printer
- CO2-steel filter
The unit is equipped with:
- Compressed-air driven CO2-pump
- Integrated digital scale up to 30 kg weighing range with automatic cut-off feature. Resolution 10 g or optional
- Filling of large bottles more than 6 kg has to be carried out on a separate floor scale with automatic cut-off feature (optional accessory)
- Safety valve (130 bar)
| TECHNICAL DATA KU5-DI (No. 255 000) |
| Drive | AC 230 V, 50 Hz |
| Dimensions (l x w x h) | approx. 1000 x 900 x 600 mm |
| Colour | hammer finish painted blue |
| Standard accessories | + 3 adaptors for filling of CO2-cartridges: 18, 25 and 32 mm diameter + 1 CO2 high-pressure hose, 2 m + 1 rotary filling valve “DF 1” to fill CO2-bottles + Support, KS-5 + 1 set of sealings for filling adaptors |
| TECHNICAL DATA KUD5-DI (No. 207 000) |
| Drive | Compressed air 8 – 10 bar 800 l/Luft/min |
| Motor | AC 230 V, 50 Hz |
| Dimensions (l x w x h) | approx. 1000 x 900 x 600 mm |
| Colour | hammer finish painted blue |
| Standard accessories | + 3 adaptors for filling of CO2-cartridges: 18, 25 and 32 mm diameter + 1 CO2 high-pressure hose, 2 m + 1 rotary filling valve “DF 1” to fill CO2-bottles + Support, KS-5 + 1 set of sealings for filling adaptors |
| TECHNICAL DATA KUS5-DI (No. 235 000) |
| Drive | three-phase current 230/400 V, 50 Hz |
| Dimensions (l x w x h) | approx. 1000 x 900 x 600 mm |
| Colour | hammer finish painted blue |
| Standard accessories | + 3 adaptors for filling of CO2-cartridges: 18, 25 and 32 mm diameter + 1 CO2 high-pressure hose, 2 m + 1 rotary filling valve “DF 1” to fill CO2-bottles + Support, KS-5 + 1 set of sealings for filling adaptors |

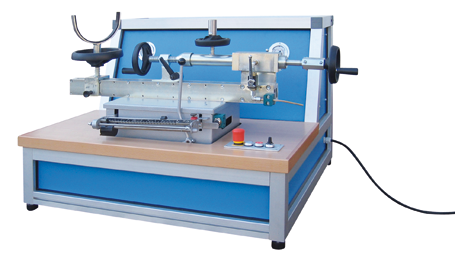

KUS5-LW (No. 235 100)
