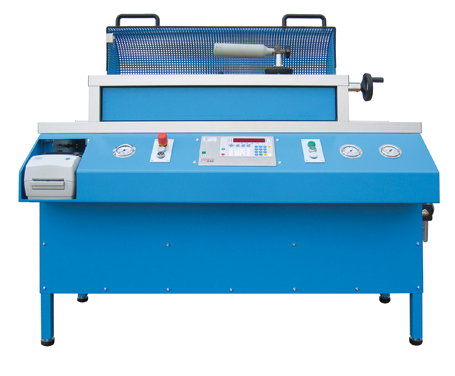

KU6-DI-N2 · No. 261 000

Combined filling unit for Carbon Dioxide (CO2) and Nitrogen (N2) for small cartridges fire extinguishers and cylinders of all makes and sizes with the FRITZ EMDE universal filling rail.

TECHNICAL DATA
Filling capacity CO2max. 5 kg/min
Working pressuremax. 130 bar
Safety valve130 bar
DriveAC 230 V, 50 Hz, 10 A
Dimensions (l x w x h)approx. 1300 x 750 x 1250 mm
Working height850 mm
Colourhammer finish painted blue

The unit is equipped with:

  • digital scale (resolution 5 g) with automatic cut-off
  • Compressed-air driven CO2-pump
  • Compressed-air driven N2-pump
  • Filling speed regulator
  • Electrically relief valve
  • Universal FRITZ EMDE filling rail
  • CO2-filter
  • Safety valve (130 bar)

Standard accessory:

  • 3 adaptors for CO2-cartridges:
    18 mm, 25 mm und 32 mm
  • 1 CO2-High-Pressure hose 2 m
  • 1 DF1-adaptor for filling of CO2-cylinders
  • 1 KS 5 support
  • 1 set of socket wrenchs, 10 – 32 mm
  • 1 CO2-steel filter

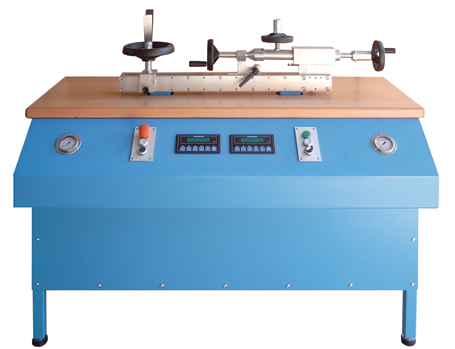

KUD6-DI-N2 Protect · No. 263 000

co2-anlage-ku6-di-n2

Accessories available at extra charge:

  • Floor scale with automatic cut-off 200 kg, 20 g resolution display integrated in filling unit scale platform approx. 600 x 400 mm incl. cylinder bracket
  • CO2-Quick fast filling adaptor
  • Raisable safety guard for filling rail

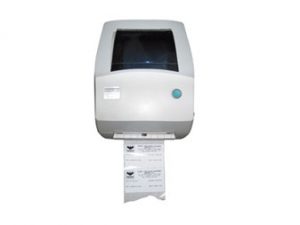

  • Label printer
