EM130 · No. 273 000

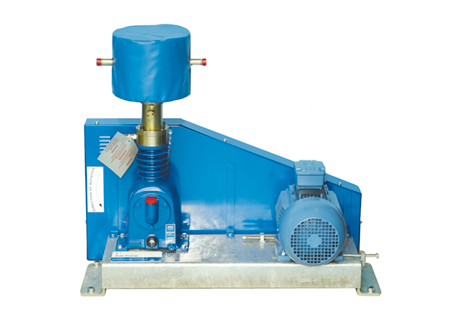

The EM130 is a CO2-plunger pump designed to fill small and medium scale cylinder from bulk liquid CO2 storage vessels or to transfer liquid CO2 from one cylinder to another. Where a bulk liquid CO2-tank is used as a supply source, refrigeration is required in the tank. It may also be used where a High-Pressure source of liquid CO2 is required for a particular process.
The EM130 pump is CE marked to comply with European Unitry Directive 98/37/EC and low Voltage Directive 73/23/EC. Recharging Units comply with Pressure Equipment Directive 97/23/EC.
TECHNICAL DATA |
Filling capacity CO2 | (fluid at -17°C) 300 kg/hr |
Working pressure | max. 103,5 bar |
Suction connection | 1/2″ |
Pump speed | 400 U/min |
Electric motor | 2,2 kW |
Motor speed | 1420 U/min |
Drive | three-phase current 230/400 V, 50 Hz |
Weight | (pump and motor) approx. 95 kg |
Dimensions (l x w x h) | approx. 970 x 490 x 850 mm |
