CO2-Filling Unit
KU3 · KUD3 · KUS3
No. 251 000 · No. 203 000 · No. 231 000

product inquiry
download data sheet

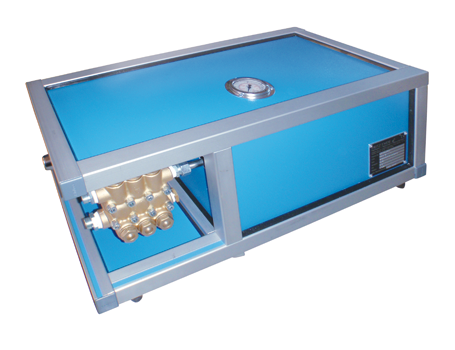

The KU3 is a compact, mobile CO2-filling unit. It is especially appropriate for service offices and service vehicles to fill CO2 directly on-site.

The unit is equipped with:

  • 2 pcs. CO2-hose (160 bar)
  • Pressure gauge (160 bar)
  • Electric cable 230 V
  • Safety valve (130 bar)
co2-filling-unit-ku3-kud3-kus3
TECHNICAL DATA KU3 (No. 251 000)
Constructionaluminium profile construction
Pump3-pistons-pump
VoltageAC 230 V, 16 A
Weightapprox. 34 kg
Filling capacitymax. 3,5 kg/min
Dimensions (l x w x h)approx. 550 x 400 x 340 mm
Colourhammer finish painted blue
TECHNICAL DATA KUD3 (No. 203 000)
Constructionaluminium profile construction
Motorcompressed-air-driven 8 – 10 bar
Weightapprox. 25 kg
Filling capacitymax. 3,5 kg/min
Dimensions (l x w x h)approx. 550 x 400 x 340 mm
Colourhammer finish painted blue

TECHNICAL DATA KUS3 (No. 231 000)
Constructionaluminium profile construction
Pump3-pistons-pump
Voltage230 V, 16 A or 380 V, 12 A
Weight

approx. 36 kg

Filling capacitymax. 3,5 kg/min
Dimensions (l x w x h)approx. 550 x 400 x 340 mm
Colourhammer finish painted blue
