WHP-TR-mano · No. 482 000

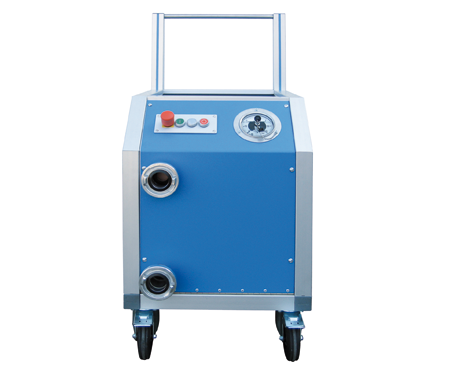

Hydrant testing unit with drying, MODEL „WHP-TR-mano“
The „WHP-TR-mano“ is equipped with high-pressure pump, hose drying unit and adjustable pressure gauge with switch-off feature. The unit is designed for pressure test of rising fire mains and pressure hoses of fire brigades.
| TECHNICAL DATA |
| Dimensions (l x w x h) | ca. 800 x 500 x 500 mm (mit Griffstange ca. 1000 mm) |
| Water input | Storz C |
| Water output | Storz C |
| Drying connection | Storz C |
| Operating pressure | 25 bar |
| Driver | AC 230 V, 16 A |
| Colour | aluminium/blue or aluminium/red |
The large dimensioned connections (water inlet and outlet) enable fast water filling of the hoses and rising fire mains to be tested. The pressure gauge disconnects automatically on reaching the set pressure. The unit is also availalbe optionally without drying on request („WHPmano“)
The unit consists of:
- Aluminum construction
- Aluminium casing
- 4 wheels – 2 x movable + 2 x rigid
- 1 locking brake
- High-pressure pump
- Air blower (max. 2,2m³/min) with heater from 0 – 60 °C
- Adjustable pressure gauge with electrical cut-off feature (optional: with digital display)
- Electric distributor
Accessories (optional):
- 1 transition piece C-D
- 1 transition piece B-C
